MT07-2G

Products

MT07-2G

Product No.:2022125102950

  • Details

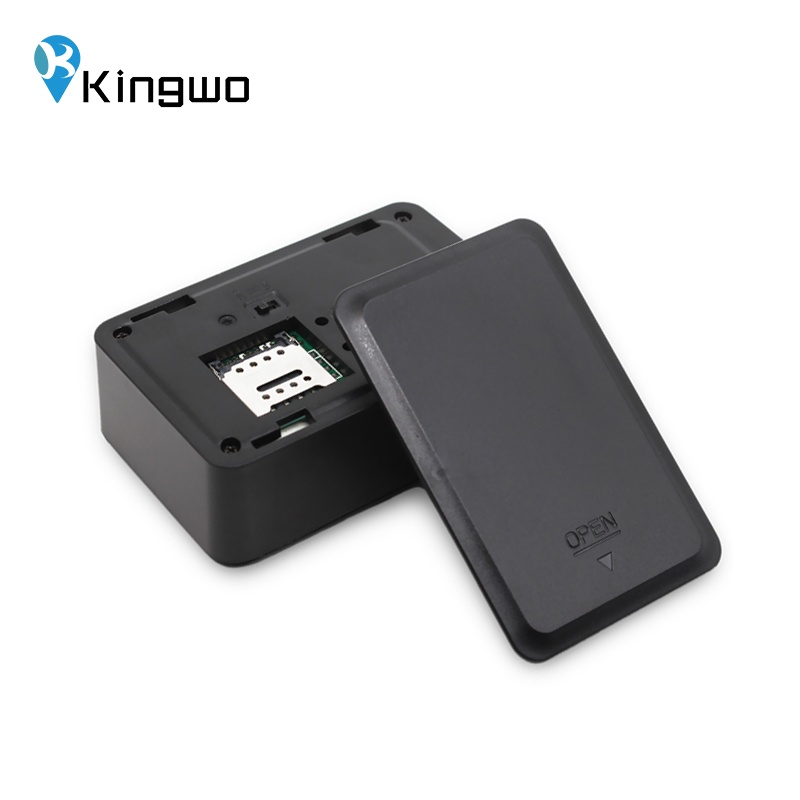

MT07 is a 2G asset GPS tracker with 2700Mah battery, compact size, and built-in GPS/GSM antenna, low cost, low data consumption. It’s ideally suitable for Asset tracking market.

_01_02

Physical

Dimension

64.5mm*41.5mm*25.5mmL*W*H

Weight

78±5g

Cellular

Communication module

Quectel MC25

Frequency

Working frequency:

GPRS: 850/900/1800/1900MHz

Sensitivity:    -107dBm@850/900MHz

-106dBm@1800/1900MHz

Output power:  Class 4 (2W)@850/900MHz

Class 1 (1W)@1800/1900MHz

GPRS data: GPRS Class 10, Mobile Station Class B

GPS

Channels: 50

Sensitivity: -147dBm

Position accuracy:5-10m

Accuracy: 5m CEP

Cold start: <27s

Hot start: <1s

Power

Battery

Disposable Lithium-ion battery and 3.6V2700mAh

and ultra-low discharge rateless than 1%, store one year below 25

Power consumption

Average working current <100mA; Power save current <15uA;

GSM antenna

Internal High Gain

GPS antenna

Internal High Gain

SIM

Microsim

Indicator

2 status LEDs, Green: GPS,  Red: GPRS

Environmental Parameter

Working Temperature

-20~ +70

Humidity

5% ~ 95% (no fog)

Ingress Protection Rating

IP65

_03

04

05
