MT100-2G

Product No.:2022125103318

  • Details

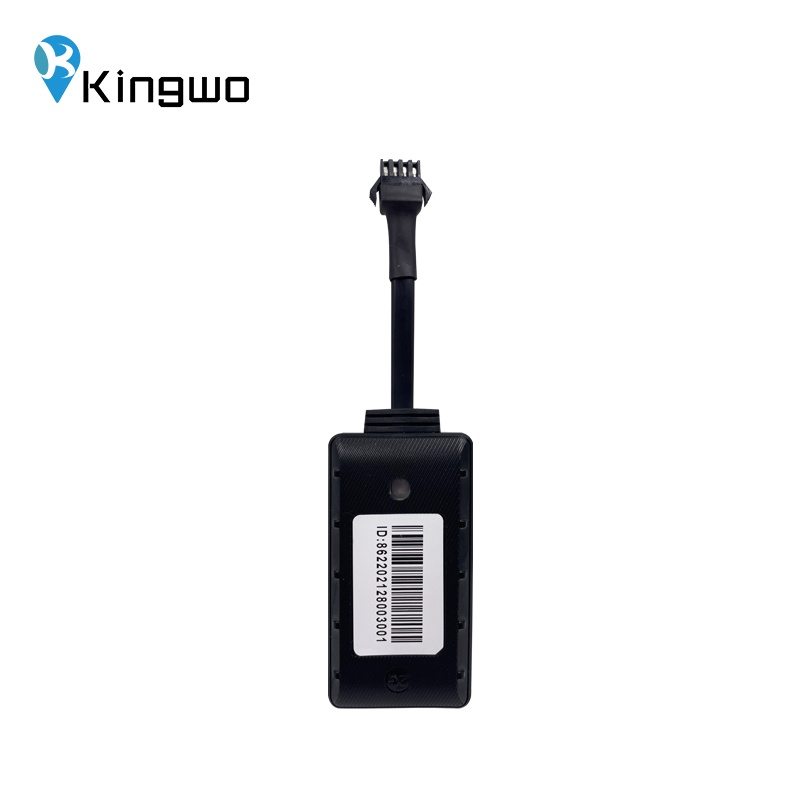

MT100 is a compact GPS Tracker for vehicles, it is small in size and with internal GPS/GSM antenna. It is designed for cars, vehicles, scooters and motorcycles, the device itself supports 9-90 volts, and it has one digital output for power off relay connecting and one digital input for ignition detect and Bluetooth function as well.

_01_02

Physical

Dimension

75*40*13mm

Weight

45±3g

Cellular &GPS

Module

Quectel MC25

GSM

Quad-band 850/900/1800/1900MHz

GPRS multi-slot class 12/10

GPRS mobile station class B

Compliant to GSM phase 2/2+ –Class 4 (2 W @ 850/900MHz) –Class 1 (1 W @ 1800/1900MHz)

GPRS class 12: max. 85.6 kbps (downlink/uplink) PBCCH support

Coding schemes CS 1, 2, 3, 4

PPP-stack

USSD

GPS

Receiver type

-33 tracking /99 acquisition

-channel Sensitivity

-Tracking: -167 dBm

-Reacquisition: -161 dBm

-Cold starts : -149 dBm

Time-To-First-Fix –

-Cold starts: 28s (typ.)

-Hot starts: <1s

Warm starts: 22s

Accuracy

-Horizontal position : <2.5M CEP

Bluetooth

Bluetooth

5.0

Power

Input voltage

9-100V

Battery

NI-MH AAA 3.6V/90mA, 2hours working time based on 2-3 minutes upload

Power consumption

Average Current: <30mA (DC 12V)

Maximum current: <10mA (DC 12V)

_03


0405
