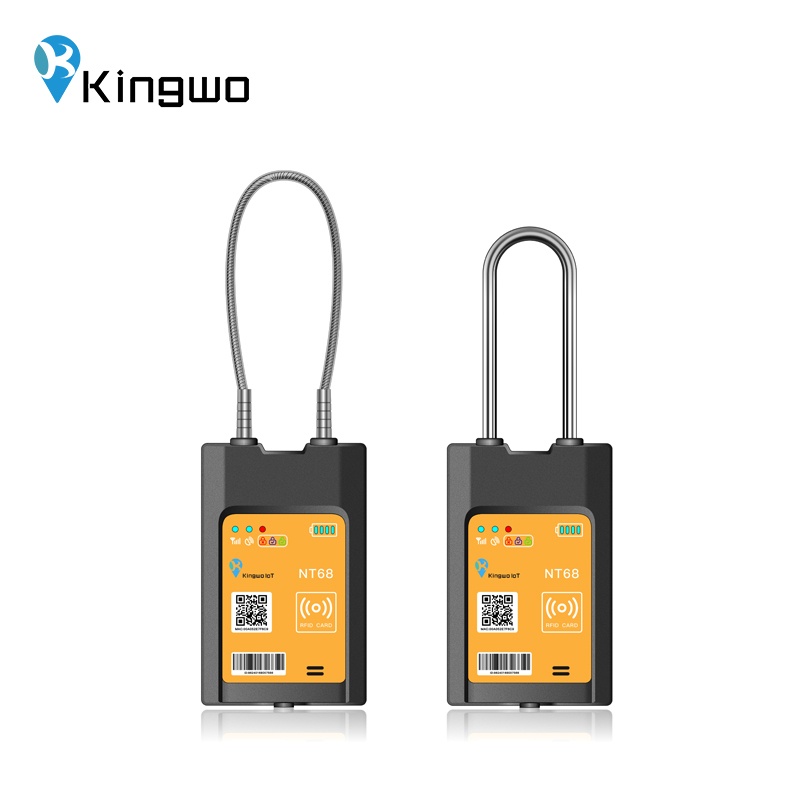

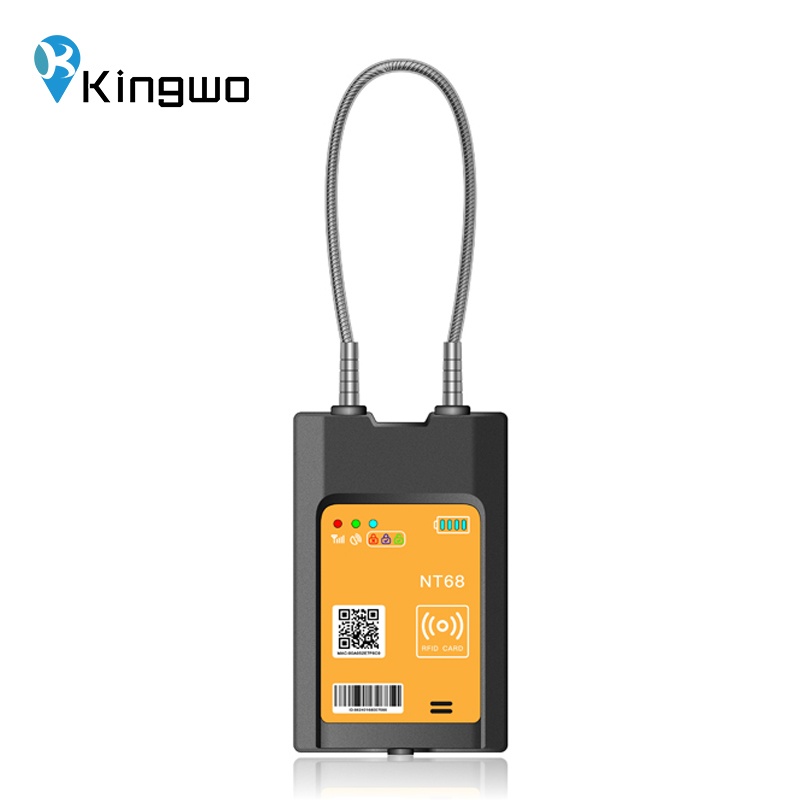

Cut Rope Alarm, GPS Lock Tracker for Container, Unlock by IC/BLE/SMS/Platform/APP, 4G GPS Tracker for Logistics
|

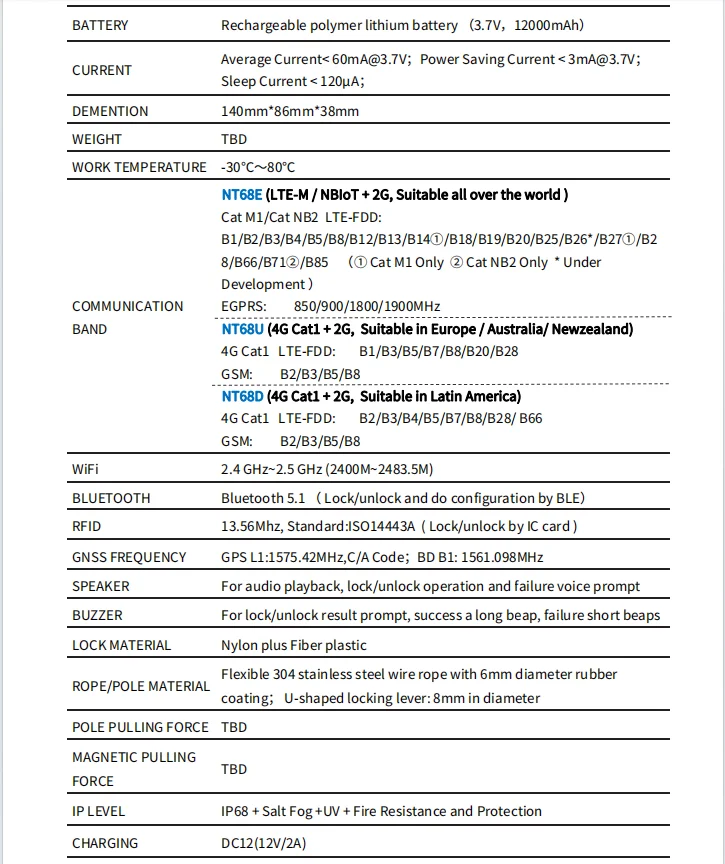

BATTERY |
Rechargeable polymer lithium battery (3.7V,12000mAh) |
|
CURRENT |
Average Current< 60mA 3.7V;Power Saving Current < 3mA 3.7V; Sleep Current < 120μA; |
|
DEMENTION |
140mm*86mm*38mm |
|
WEIGHT |
662g |
|
WORK TEMPERATURE |
-30℃~80℃ |
|
COMMUNICATION BAND |
NT68E (LTE-M / NBIoT + 2G, Suitable all over the world ) Cat M1/Cat NB2 LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B14(a)/B18/B19/B20/B25/B26*/B27(a)/B28/B66/B71(b)/B85 ((a) Cat M1 Only (b) Cat NB2 Only * Under Development ) EGPRS: 850/900/1800/1900MHz
NT68U (4G Cat1 + 2G, Suitable in Europe / Australia/ Newzealand) 4G Cat1 LTE-FDD: B1/B3/B5/B7/B8/B20/B28 GSM: B2/B3/B5/B8
NT68D (4G Cat1 + 2G, Suitable in Latin America) 4G Cat1 LTE-FDD: B2/B3/B4/B5/B7/B8/B28/ B66 GSM: B2/B3/B5/B8 |
|
WiFi |
2.4 GHz~2.5 GHz (2400M~2483.5M) |
|
BLUETOOTH |
Bluetooth 5.1 ( Lock/unlock and do configuration by BLE) |
|
RFID |
13.56Mhz, Standard:ISO14443A ( Lock/unlock by IC card ) |
|
GNSS FREQUENCY |
GPS L1:1575.42MHz,C/A Code;BD B1: 1561.098MHz |
|
SPEAKER |
For audio playback, lock/unlock operation and failure voice prompt |
|
BUZZER |
For lock/unlock result prompt, success a long beap, failure short beaps |
|
LOCK MATERIAL |
Nylon plus Fiber plastic |
|
ROPE/POLE MATERIAL |
Flexible 304 stainless steel wire rope with 6mm diameter rubber coating; U-shaped locking lever: 8mm in diameter |
|
IP LEVEL |
IP68 + Salt Fog +UV + Fire Resistance and Protection |
|
CHARGING |
DC5 V 2A |
Q1.Can you help for design?
A:Yes,we have our own software and hardware engineer,you can give your idea to us,we can assist the design work.Provide sample for your reference.
