LT32-4G

Product No.:202212511319

  • Details

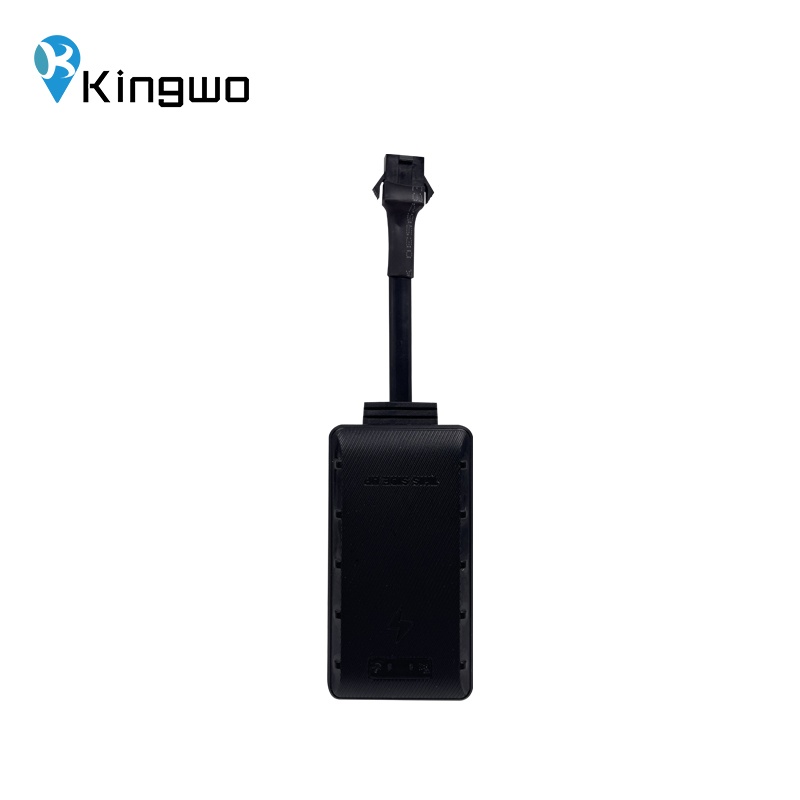

LT32 is a compact GPS Tracker for vehicles, it is small in size and with internal GPS/GSM antenna. It is designed for cars, vehicles, scooters and motorcycles, the device itself supports 9-90 volts, and it has one digital output for power off relay connecting and one digital input for ignition detect and Bluetooth function as well.

_01_02


Physical

Dimension

75*40*13mm

Weight

45±3g

Cellular &GPS

Module

Fibocom MC615

GSM

Working frequency:

LTE FDD: B1/B3/B5/B8

LTE TDD: B38/B39/B40/B41

Operating Temperature: -40~+85

Operating Voltage: 3.3V~4.3V typical 3.8V

GPS

Receiver type

-33 tracking /99 acquisition

-channel Sensitivity

-Tracking: -167 dBm

-Reacquisition: -161 dBm

-Cold starts : -149 dBm

Time-To-First-Fix –

-Cold starts: 28s (typ.)

-Hot starts: <1s

Warm starts: 22s

Accuracy

-Horizontal position : <2.5M CEP

Bluetooth

Bluetooth 5.0



Power

Input voltage

9-100V

Battery

NI-MH AAA 3.6V/60mA,1.5hours working time based on 2-3 minutes upload

Power consumption

Average Current: <30mA (DC 12V)

Maximum current: <10mA (DC 12V)
